Description
Part Number :WC8T12P100WR90Industry Applications
- Radar Systems
- RF Test & Measurement
- Satellite Communication Equipment
- Electronic Warfare & Defense
- RF Test & Measurement
- Microwave Radio & Point-to-Point Links
- ISM & Industrial
- Full Customization Available(Band,Logo,Part Number, RF Power，Cavity Size)
Product Description

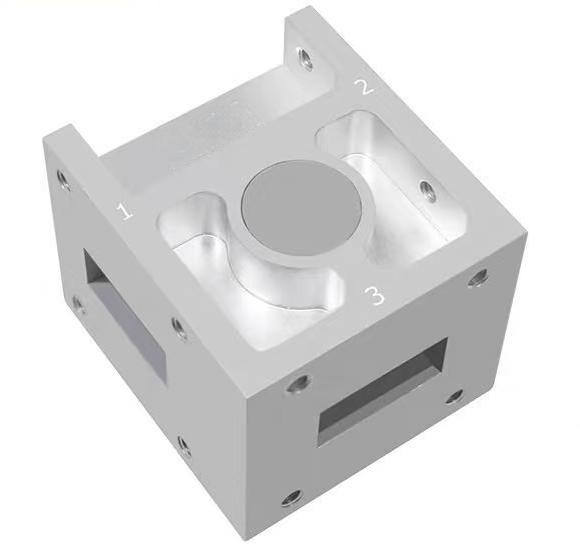

8 to 12GHz Waveguide Circulator is a passive RF component enabling one-way signal flow in a waveguide topology, offering high isolation and power handling to protect high-power transmitters within 8–12GHz.
- High-performance waveguide circulator operating across 8–12GHz (X-band) for high-power microwave unidirectional signal transmission.
- Utilizes microwave non-reciprocal principle to block reverse signal reflection and protect power amplifier and transceiver modules.
- Precision waveguide matching delivers low insertion loss, high isolation and stable electrical performance under high-power conditions.
- Robust waveguide structure with standard flange interfaces (e.g., WR-90), easy to integrate into radar, satellite and high-power communication systems.
RF Characteristics
| Name | Unit | Performance Data |
| Frequency Range | GHz | 8-12 |
| Insertion loss | dB max | 0.5 |
| Isolation | dB min | 18 |
| VSWR | max | 1.3 |
| Average power | W | 100 |
| Connection method | WR90(BJ100) | |
| Operating Temperature Range | ℃ | -40 ~ +85℃ |
| Outline Drawing | mm | 48*53*42mm |
Quality Standards
- Standardized Production: Manufactured strictly in accordance with international RF microwave component specifications and industry unified quality standards.
- Full-item Parameter Testing: All core indicators including frequency band, VSWR, interface size and electrical performance are strictly calibrated and tested before delivery.
- Qualified Surface Treatment Process: Internal chromate conversion and external anti-corrosion paint processes meet industrial standards, guaranteeing long-term stable electrical performance and structural durability.
- Strict Environmental Reliability Test: Finished products pass high and low temperature cycling tests to verify extreme environment adaptability.
- Batch Quality Stability: 100% full-performance inspection for all finished products, meeting commercial, industrial and military-grade equipment matching requirements
- We provide a 12-month warranty for all products.
