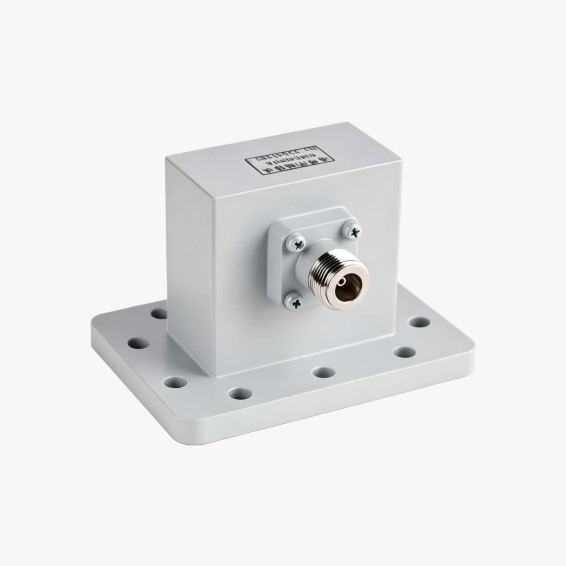

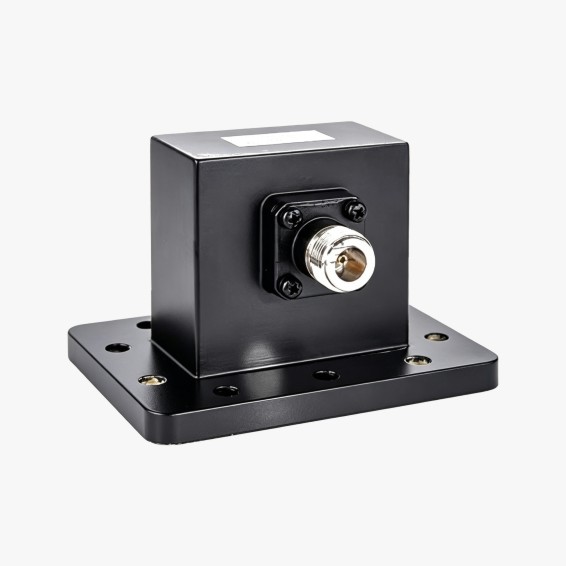

Waveguide to Coaxial Adapter
PN: WTCA90P100WR229
Frequency Range: 3.22-4.9GHz
VSWR: 1.25Min
CW Power: 100 W
Peak Power: 3 W
Connector Type: WR229 to N Female
Flange Type: FDP
Temperature: -25°C to +125°C

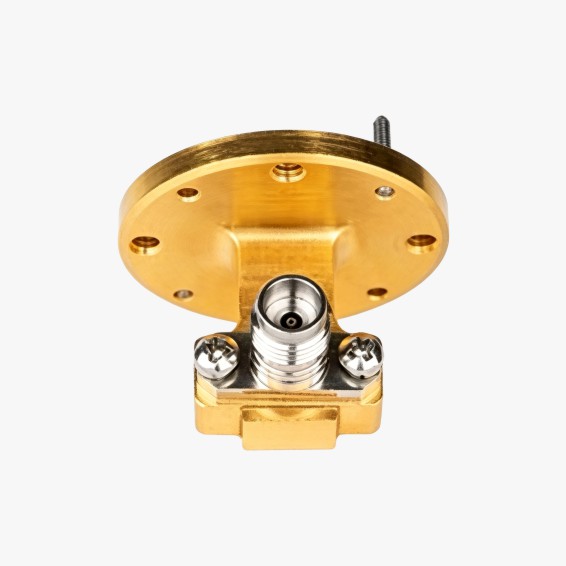

Waveguide to Coaxial Adapter
PN: WTCA90P3WR22
Frequency Range: 33-50GHz
VSWR: 1.6Min
CW Power: 3W
Peak Power: 0.1 W
Connector Type: WR22 to 1.85mm Female
Flange Type: FUGP
Temperature: -55°C to +125°C
Waveguide to Coaxial Adapter
PN: WTCA90P50WR275
Frequency Range: 9.84-15GHz
VSWR: 1.25Min
CW Power: 50 W
Peak Power: 1 W
Connector Type：WR75 to SMA Female
Flange Type: FBP
Temperature: -55°C to +125°C

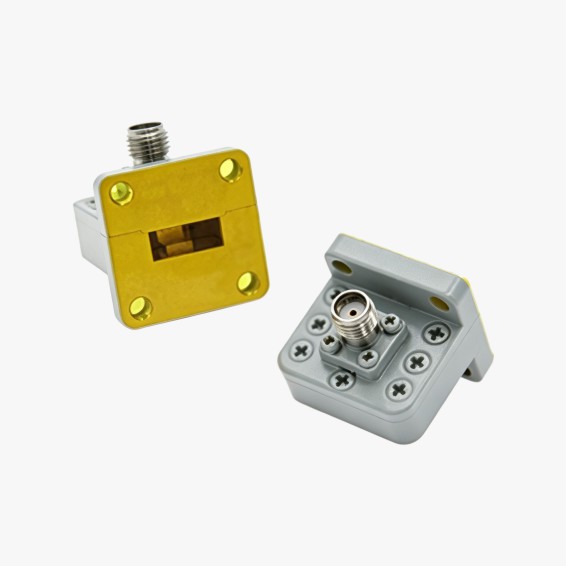

Waveguide to Coaxial Adapter
PN:WTCA90P50WR42
Frequency Range GHz 17.6-26.7
VSWR: 1.25Min
CW Power: 50W
Peak Power: 1 KW
Connector Type: WR229 to SMA Female
Flange Type: FBP
Temperature: -25°C to +125°C

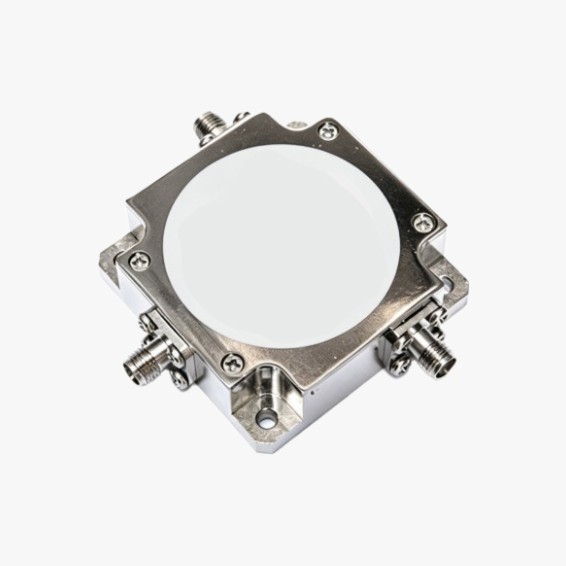

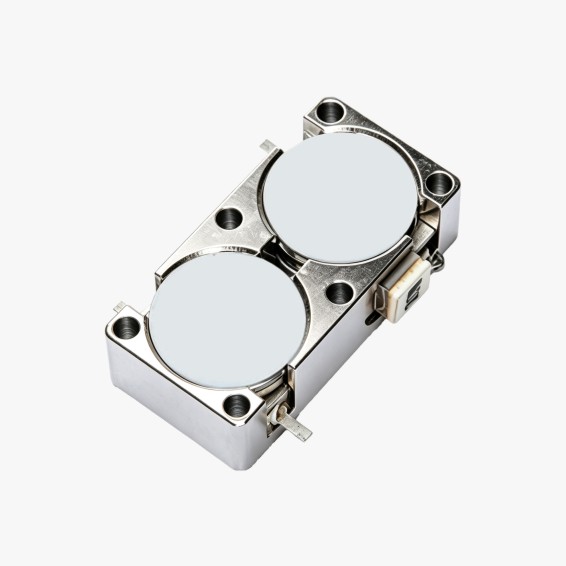

16dB Coaxial Circulator
PN: :CC470T700P400A5257SF
Frequency Range:470-700MHz
Insertion Loss:0.5dB Max
Isolation: 16dB Min
VSWR: 1.4Min
Forward Power: 400W
Connector Type: 3P-SMA Female
Temperature: +10℃~+50℃

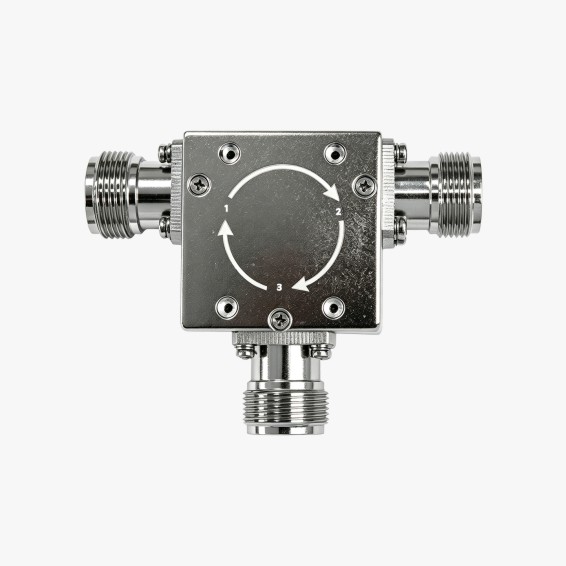

15dB Coaxial Circulator
PN: :CC10T12A7070SF
Frequency Range:10-12MHz
Insertion Loss:3.5dB Max
Isolation: 15dB Min
VSWR: 1.5Min
Forward Power: 100W
Connector Type: 3P-N Female
Temperature: +10℃~+50℃

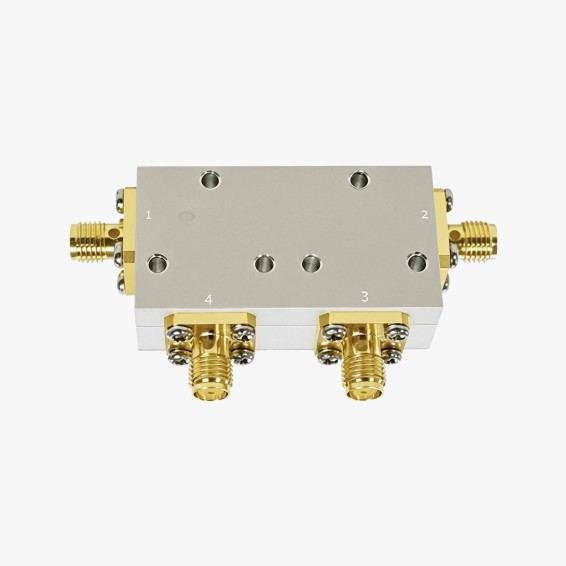

36dB Coaxial Circulator
PN: 2CC4T8P100A2242c
Frequency Range:4-8GHz
Insertion Loss:1.0dB Max
Isolation :36dB Min
VSWR: 1.3Min
Forward Power: 100W
Connector Type: 4P-SMA Female
Temperature: -40 ~ +85°C
42dB Coaxial Circulator
PN: :2DC2500T2700A3819
Frequency Range:2.5-2.7GHz
Insertion Loss:0.6dB Max
Isolation :42dB Min
VSWR：1.2Min
Forward Power：60 W
Connector Type：TAB
Temperature：+10℃~+50℃
