RF Terminations

2Wave RF Support:

24-hour online response worldwide.
12-month long-term after-sales warranty.
2–4 weeks stable production lead time.
Full-range OEM & ODM customization support.
100% full electrical testing before shipment with complete test reports.
Professional RF engineering technical support
Regular new RF product iteration
Small order MOQ 1 piece.
Cooperate with 3 top global logistics providers: DHL, FedEx, UPS.
Complete export certification & technical document supply.
Independent factory without middlemen, competitive factory-direct price.
Strict raw material incoming inspection & stable raw material supply.

Description

Industry Applications

Communication System Devices: Applied in 4G/5G small cells, wireless repeaters, IoT wireless modules and RF transceiver circuits to protect power amplifiers and stabilize signal transmission.
Detection & Satellite Equipment: Suitable for satellite communication terminals, microwave radar and wireless detection devices to eliminate reverse signal interference.
Test & Measurement: Widely used in microwave test benches, RF calibration instruments and laboratory signal testing systems to ensure test accuracy.
High-end Industrial & Military Scenarios: Ideal for miniaturized aerospace communication equipment, industrial wireless sensing devices and compact military RF modules.

Short Product Description

• Precision matched passive RF load components
• Fully absorb surplus microwave power to eliminate reflected signals
• Low VSWR to stabilize RF circuit operating status
• Protect amplifiers, circulators and test ports from damage

If this listed model fails to fit your project, feel free to contact us for full customization: private logo, custom part numbers, tailored frequency bands, connectors, dimensions and more.

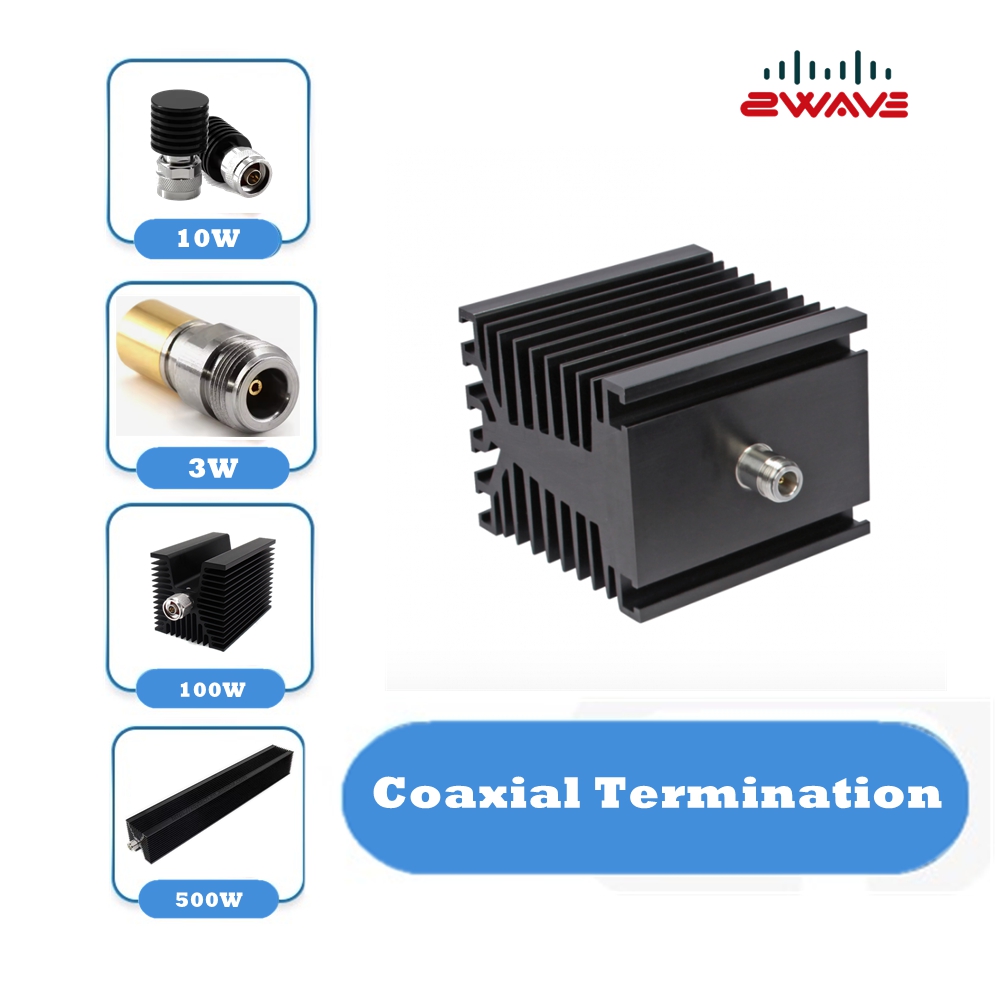

Coaxial Type Termination 26.5GHz up to 2000W
Frequency range(GHz)	VSWR	Power Rating (W)	Connector Type	Impedance(Ω)	Size(mm)	Part Number
DC-3	≤1.05	1	SMA	50	∅9*16	T1W3GSF
DC-6	≤1.10	1	SMA	50		T1W6GSF
DC-18	≤1.30	1	SMA	50		T1W18GSF
DC-3	≤1.07	2	SMA	51	∅6.5*15	T2W3GSF
DC-6	≤1.1	2	SMA	52		T2W6GSF
DC-18	≤1.30	2	SMA	53		T2W18GSF
DC-3	≤1.10	5	SMA	50	∅15.7*24.6	T5W3GSF
DC-18	≤1.30	5	SMA	50		T5W18GSF
DC-26.5	≤1.30	5	SMA	50		T5W26.5GSF
DC-3	≤1.10	10	SMA	50	∅16.5*38.7	T10W3GSF
DC-18	≤1.30	10	SMA	50		T10W18GSF
DC-26.5	≤1.30	10	SMA	50		T10W26.5GSF
DC-8	≤1.25	25	N/SMA/TNC	50	∅38*70	T25W8GSF
DC-18	≤1.40	25	N/SMA/TNC	50	∅38*70	T25W18GSF
DC-4	≤1.15	50	N,7/16	50	∅63*92	T50W4GNF
DC-18	≤1.55	50	N,7/16	50	∅63*92	T50W18GNF
DC-4	≤1.15	100	N/SMA	50	1537676	T100W4GSF
DC-18	≤1.55	100	N/SMA	50	1537676	T100W18GSF
DC-3	≤1.10	200	N,7/16	50	2107979	T200W3GNF
DC-18	≤1.50	200	N,7/16	50	21513075	T200W18GNF
DC-3	≤1.15	300	N,7/16	50	28013075	T300W3GNF
DC-18	≤1.70	300	N,7/16	50	288128177	T300W18GNF
DC-3	≤1.15	500	N,7/16	50	39713075	T500W3GNF
DC-10	≤1.55	500	N,7/16	50	39713075	T500W10GNF
